Disc Granulator for Fertilizer Production

Disc Granulator Capacity: 0.5-14 tons per hour. Disc Granulator Raw Materials: organic materials, npk materials and mineral materials. Disc Granulator Applicated range: organic fertilizer and compound fertilizer production. Disc Granulator Advantage: low cost, widely using, easy granule size controlling and easy installation

Get price Send us

Technical Parameter of Disc Granulator

Model Power

(kw)

Capacity

(t/h)

Rotate Speed

(r/min)

Disc Diameter

(mm)

Dimension(mm) Granulat Ratio Side Height

(mm)

Disc Rotate Speed Installation Angle
GTZD-1000 2.2 0.5-1 1450 1000 1800*1200*1600 >90% 400 25r/min 35-55°
GTZD-1200 3 0.8-1.5 1450 1200 2000*1400*1950 >90% 400 22r/min 35-55°
GTZD-1500 4 1-2 1450 1500 2200*1800*2050 >90% 400 20r/min 35-55°
GTZD-1800 5.5 1.5-2.2 1450 1800 2600*2000*2450 >90% 500 16r/min 35-55°
GTZD-2000 7.5 2-3 1450 2000 2900*2100*2750 >90% 500 16r/min 35-55°
GTZD-2500 7.5 2.5-3.5 1450 2500 3200*230*300 >90% 700 12r/min 35-55°
GTZD-2800 11 3-6 1450 2800 3500*2500*3150 >90% 700 12r/min 35-55°
GTZD-3000 11 4-7 1450 3000 3700*2700*3300 >90% 700 11r/min 35-55°
GTZD-3600 15 5.5-10 1450 3600 4300*3100*4000 >90% 700 9r/min 35-55°
GTZD-4500 37 8-14 1450 4500 4700*3300*5000 >90% 700 8r/min 35-55°

Introduction of Disc Granulator

Disc Granulator for Fertilizer Production is widely used for producing round granules of organic fertilizer and compound fertilizer. Adopting arc disc angle structure, the granulation rate can be 85% above with uniform granules in Organic fertilizer disc granulator. The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.

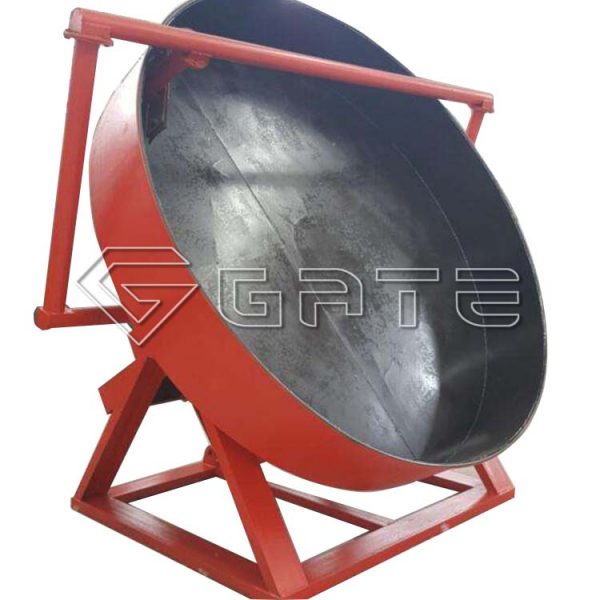

Organic fertilizer disc granulator

Features of Disc Granulator

1. Both organic and compound fertilizer production in Compound fertilizer disc granulator.

2. The design of granulation plate is convenient for intermittent continuous production, which greatly reduces the labor intensity and improves labor efficiency.

3. The disc bottom adopts multiple steel plates which are firm, durable, not deforming.

4. Granulator’s main gears adopt high temperature quenching technology, doubling the service life.

5. The Inorganic fertilizer disc granulator disc lining adopts the high strength glass steel which is antiseptic and durable.

6. The machine has advanced configuration, reasonable design, convenient operation, excellent performance, easy control, energy saving and nature-friendly.

Disc Granulator Supplier.jpg

Working Principle of Disc Granulator

Materials enter into disc plate by conveyor. With rotating of disc and water sprayer, materials will be better combined with water in Disc granulator for sale. Disc rotate make raw materials fall down and lift up, as the time goes, the granule gradually become bigger. After achieving the predetermined diameter in Disc granulator Manufacturer, the granulation will be out of the pan to the next procedure again.

Disc Granulator for Fertilizer Production.jpg
