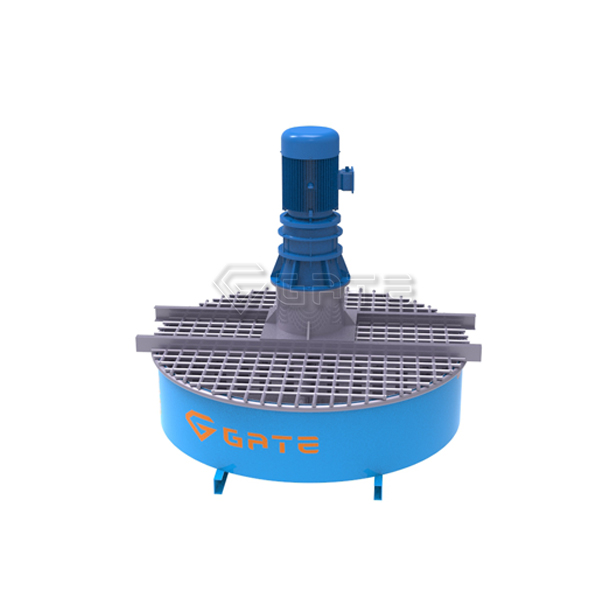

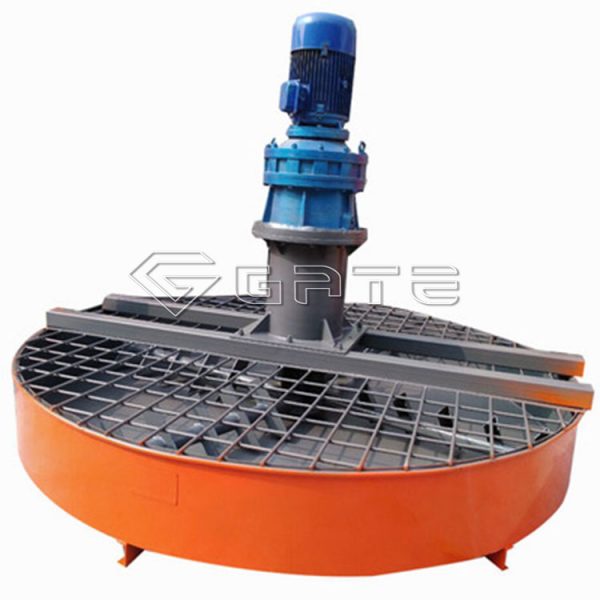

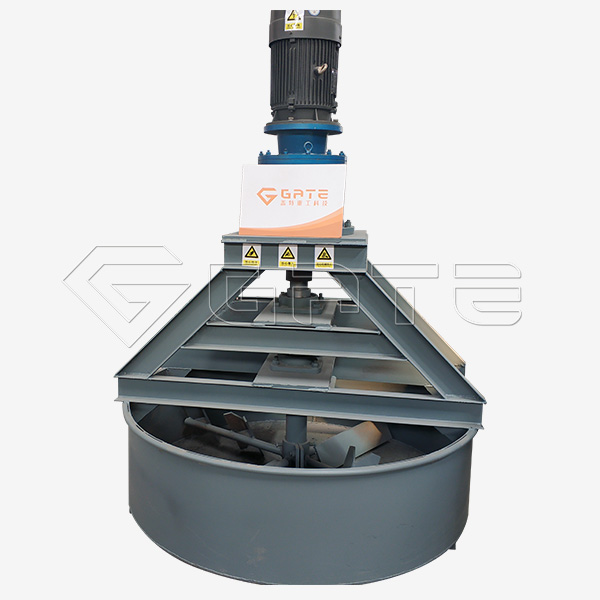

Disc type mixer manufacture in China Manfacturer

Disc type mixer manufacture in China

1.Disc type mixer raw material dealing:Various dry and wet materials, putty powder, putty paste, organic fertilizer, inorganic fertilizer 2.Disc type mixer application:organic fertilizer production line,compound fertilizer production line and dust collectors in thermal power plants can also be used in chemical metallurgy, mining, building materials and other industries. 3.Capacity:3-12t/h 4.Disc type mixer advantages:The spiral blade adopts to high anti-abrasion steel alloy, high mixing efficiency, small occupied area;Low noise, the machine use reducer to drive, work stable;reasonable structure, stable work

Get price Send us

Disc type mixer manufacture in China
Technical Parameter of Disc type mixer:



Model Volume (m3) Motor Capacity (t/h) Dimension mm
GTM-18P 1.05 11 3-5 1900*1876*1620
GTM-20P 1.57 15 4-6 2100*2076*1890
GTM-22P 1.91 18.5 6-8 2350*2316*2072
GTM-25P 2.94 22 7-9 2700*2650*2400
GTM-30P 4.95 37 8-12 3200*3150*2530
GTM-36P 8.14 55 10-14 3900*3800*3100





The material will not stick to the plate easily because of its adoption of polypropylene-lined plate or stainless steel plate.
It uses cycloidal pinwheel reducer and can stand wear and tear.
With compact structure and easy operation, it can mix the material evenly and discharge the material conveniently.

The Disc type mixer electrical motor drives the reducer, and the reducer drives the main shaft, and the main shaft drive the mixing plate to mix the materials.
