GATE Fertilizer Horizontal Mixer Delivery on Time

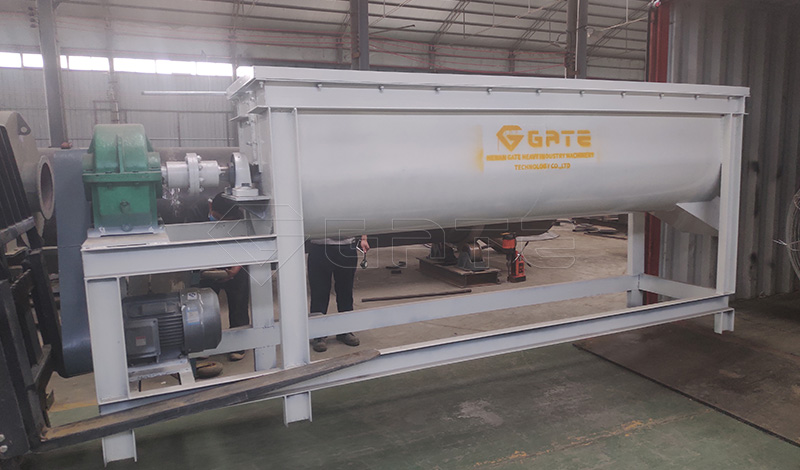

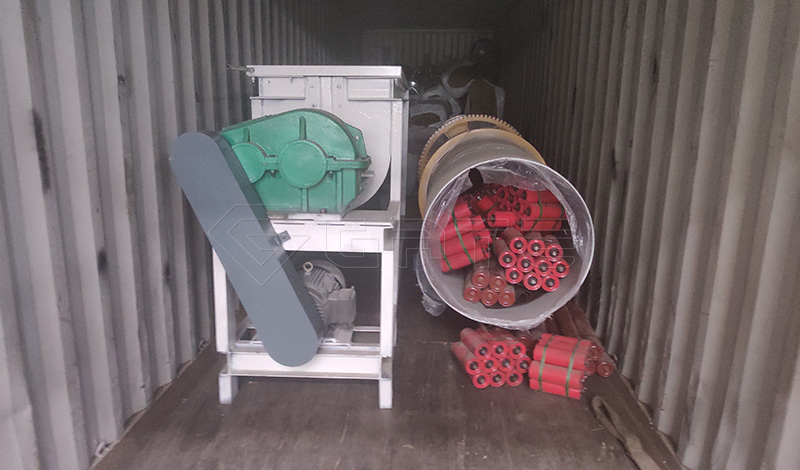

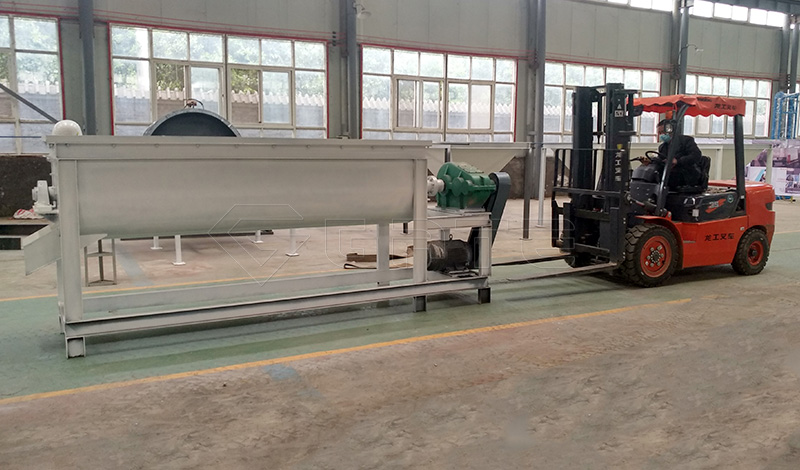

On August 7, 2019, the horizontal mixer manufactured by GATE Heavy Engineering Technology was delivered to customers smoothly. GATE Heavy Engineering Technology is an integrated environmental protection enterprise from R&D to production. It provides production plan according to customers'needs and produces independently.

Get price

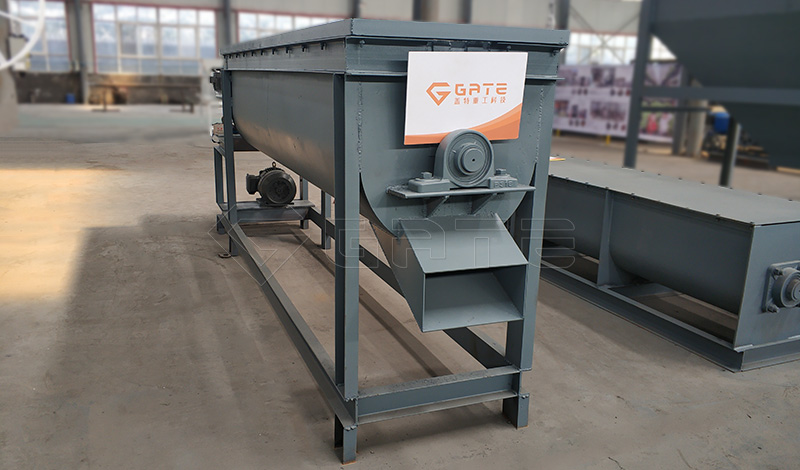

Introduction of GATE Horizontal Fertilizer Mixer

Horizontal mixer is a new generation of hybrid power plant in GATE. It has high mixing degree and low residue. It is suitable for mixing organic fertilizer and inorganic fertilizer. The material is completely mixed. Improve the mixing uniformity; Horizontal mixer uses a new rotor structure, the minimum clearance between the rotor and the shell can be adjusted to zero, effectively reduce material residue; The internal use of refueling channels, the overall structure is more reasonable, beautiful appearance, easy operation and maintenance.

https://youtu.be/BKKZ06Vuiz8

Technical parameters of GATE horizontal fertilizer mixer

Model

Capacity

Power

Overall Dimensions

L x W x H(mm)

Cylinder volume

Reducer

GTM-7015H

2-3 T/H

7.5

1500*700*750

0.50m³

ZQ Series Reducer

GTM-9015H

3-5T/H

1500*900*950

0.81m³

ZQ Series Reducer

Highlights of GATE Horizontal Fertilizer Mixer GATE horizontal fertilizer mixer

1. Fertilizer horizontal mixer can fully mix materials to improve mixing uniformity.

2. Fertilizer horizontal mixer uses a new rotor structure, the minimum clearance between the rotor and the shell can be adjusted to zero, which effectively reduces the material surplus.

3. Fertilizer horizontal mixer adopts special rotor design, which can decompose larger materials, has more reasonable overall structure, beautiful appearance and convenient operation and maintenance.

Structure of GATE Horizontal Fertilizer Mixer

1. The transmission connection of fertilizer horizontal mixer: the motor drives the belt pulley, the triangular belt and the gear reducer drives the spindle, which makes the spindle rotate. The main working parts of the drive reducer and mixer are equipped with nylon shaft pins for easy assembly and maintenance.

2. Fertilizer Horizontal Mixer Frame Part: All the working parts of the machine are fixed on the frame. The frame is welded by carbon steel plate and channel steel.

3. Mixing part of fertilizer horizontal mixer: With the rotation of the spindle, the special screw mixing blade welded on the spindle rotates synchronously, which makes the materials in the mixing chamber turn evenly and make the materials fully mixed, thus reducing the amount of residues.
