NPK Fertilizer Double Roller Granulator Manfacturer

NPK Fertilizer Double Roller Granulator

Double Roller Granulator Capacity: 0.8-3.5 tons per hour Double Roller Granulator Raw Materials: Potassic fertilizers, Nitrogen fertilizers, Phosphate fertilizer Double Roller Granulator Applicated range: NPK fertilizer production Double Roller Granulator Advantage: small space, dry processing, low energy consumption, low investment

Get price Send us

Technical Parameter of Double Roller Granulator



Model MSJZ-1T MSJZ-1.5T MSJZ-2T MSJZ-3T
Grantular Diameter 3-10mm
Grantulator Strenth 6-20N
Granulation Rate ≥90%

Material Moisture

Content

2%-9%

Granulation

Temperature

Normal Temperature
Power 11kw 18.5kw 22kw 37kw
Roller Skin Size 150*220mm 150*300mm 185*300mm 300*300mm
Dimension 1450*800*1450mm 1450*850*1500mm 1630*850*1650mm 1850*1100*2050mm
Capacity 1t/h 1.5t/h 2t/h 3t/h



Introduction of Double Roller Granulator

NPK Fertilizer Double Roller Granulator is the key equipment for compound fertilizer granulation. It uses squeezing principle to form fertilizer particles with diameters of 3.5-10mm in one time. The shape and size of the ball socket on the roller shell can be customized by customer. Dry type fertilizer Double Roller Granulator has higher granulating ratio of over 95%. With no drying technology, materials will be pressed into ball shape to meet the requirements of compound fertilizer production in Compound Fertilizer Double Roller Granulator .

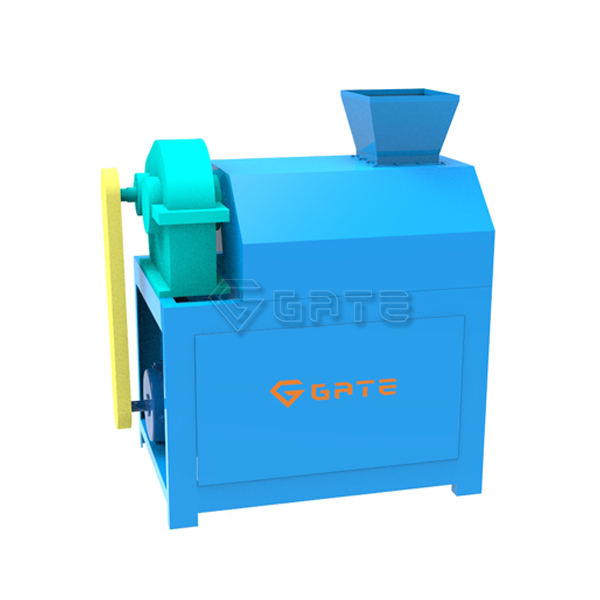

 Double Roller Granulator for sale.jpg

Feature of Double Roller Granulator

1. No drying process, normal temperature granulating, one-step forming in Mineral Fertilizer Double Roller Granulator

2. Low energy consumption and no waste water or gas emission

3. Easy operation and maintenance, no need installation of Double Roller Granulator

4. Press rollers adopt new metal which is resistant to corrosion, wear and impact.

 NPK Fertilizer Double Roller Granulator.jpg

Advantage of Double Roller Granulator

1. Reasonable structure, machines will be tested before transporting and roller will be polished in perfect using

2. Wide application scope: no only for NPK fertilizer production, but for cat litter working

3. High granulating ratio, higher than 95% in Double Roller Granulator

4. No drying need, simple working make big benefits

5. Environmental working, low energy consumption and no waste emission from Double Roller Granulator for Fertilizer Production





Working principle of Double Roller Granulator

This series of Double Roller Granulator suppler is extruded model, and its working principle is: Electromotor drive the belt and pulley, then it is transmitted to the driving shaft by the speed reducer, and by synchronizing the open gear with the passive shaft, achieving the working in the same direction. Material is added from the hopper, after the Double Roller Granulator manufacturer roll extrusion forming, demoulding pelletizing; and through a chain, the balls are transferred to the broken screen studio, sieving and isolate the finished products (the balls), then return to mix with new materials and granulate again.

Mineral Fertilizer Double Roller Granulator.jpg
