Cow Manure Solid-liquid separator Manfacturer

Cow Manure Solid-liquid separator

Capacity: 1-10 m³/h. Raw Materials: animal manure, sludge, vinasse and sugar wastes. Applicated range: organic fertilizer production, waste recycling. Advantage: high speed press capacity, easy operation, multi-function, stable working

Get price Send us

Technical Parameter of Solid-liquid Separator


Model MSTS-180 MSTS-210 MSTS-260
Rotary Drum Speed
380V 380V
3-5 m³/h
5-7 m³/h 7-10 m³/h

Introduction of Solid-liquid Separator

1) Animal manure solid-liquid separator is used to reduce the water content of sawdust, animal dung, cow dung, acid-sludge, kitchen rubbish, and many other dregs.

2) If the raw materials are solid, when the moisture are more than 60-90%, Sludge Solid-liquid separator could reduce the moisture to about 50%.

3) If the raw material is liquid, the moisture in the raw material can be 60-70%, and the moisture of final product is about 40-50%, there will be no water when you press it by hands. After processing by Solid-liquid separator, the final products could be used as raw material of organic fertilizer or biomass briquette.


Feature of Solid-liquid Separator

1) Solid-liquid separator manufacturer can reduce the COD or content of waste water.

2) The solid content of separated solid materials can reach up to 50%.

3) Low energy consumption, small investment, high efficiency.

4) Compact structure, raw material of Solid-liquid separator is iron steel, the raw material of main shaft and screen is stainless steel.

5) Easy operate and maintenance of Solid-liquid separator.

6). Fast investment return, no need to add any flocculating agent.

Working Principle of Solid-liquid Separator

Solid-liquid separator for chicken manure use the pump to pull the fresh fowl manure, cow dung, etc. into dewater equipment , the material through the screen and then press by the screw , the rotary speed of the machine can reach 45r/min , within the press of the screen and high rotary speed , the material will be dewatered by Organic Fertilizer Solid-liquid separator, and the water will enter into the pool through screen after this machine , water contain in manure is less than30- 35%.The final product solid manure can be used as fertilizer directly .

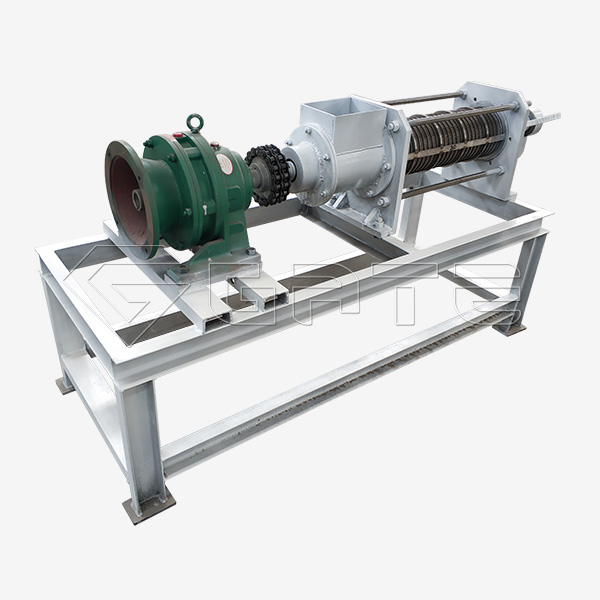

Cow Manure Solid-liquid separator.jpg
