Animal Manure Organic Fertilizer Mixing Granulator

Organic Fertilizer Mixing Granulator Capacity: 1-10 tons per hour . Organic Fertilizer Mixing Granulator Raw Materials: poultry and animal feces manure, carbon black,pottery clay ,kaolin etc. Organic Fertilizer Mixing Granulator Applicated range: organic fertilizer production. Organic Fertilizer Mixing Granulator Advantage: widely using; high granulating rate; stable working; easy operation

Get price Send us

Technical Parameter of Organic Fertilizer Mixing Granulator

Model Power Capacity Dimension Installation Angle Inlet Moisture Content Inlet Materials Size
GTZJ-60 37kw 1-2t/h 4500*1500*1050mm 2°-2.5° 20%-40% 50mesh
GTZJ-80 55kw 2-3t/h 4900*1700*1250mm 2°-2.5° 20%-40% 50mesh
GTZJ-100 75kw 3-5t/h 5300*1900*1400mm 2°-2.5° 20%-40% 50mesh
GTZJ-120 90kw 6-8t/h 5700*2100*1700mm 2°-2.5° 20%-40% 50mesh
GTZJ-150 110kw 8-10t/h 6200*2800*2000mm 2°-2.5° 20%-40% 50mesh

Product Introduction of Organic Fertilizer Mixing Granulator


Animal manure organic fertilizer mixing granulator is also called wet fertilizer granulator or stirring tooth granulator. It can not only granulate a variety of organic matter, but also is especially able to granulate the coarse fiber material that difficult to be granulated by conventional equipment, such as crop straw, wine dregs, animal manure and so on.

In addition, new type organic fertilizer mixing granulator also has a good granulation effect on the humic acid, municipal sludge and other similar raw materials. The raw materials need not to be dried before granulation, after screwing, ball shape fertilizers will be out easily.

This granulator is mainly used in organic fertilizer production line.

https://youtu.be/pucnXX79YN0


Advantage of Organic Fertilizer Mixing Granulator

1. Widely raw materials processing, especially wet raw materials

2. Energy saving, can be screened directly after working

3. High granulating rate, 90% above in animal manure organic fertilizer mixing granulator.

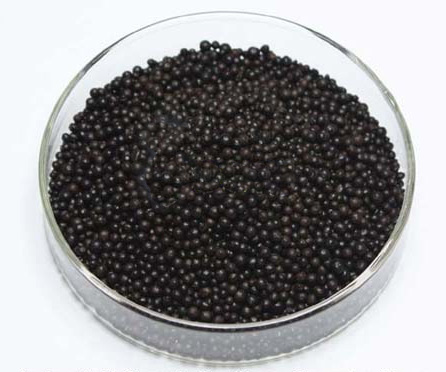

4. Hard granules in ball shape

5. Stable machine running, easy operating and maintain


Working Principle of Organic Fertilizer Mixing Granulator

Composted materials can be sent to chicken waste organic fertilizer mixing granulator with mixing.

After materials enter into the machine through the feeding inlet, by the high speed rotating mechanical stirring force and aerodynamic force thereof, the materials are mixed, granulated, sphericized and densified in the machine, achieving the aim of granulation. The formed granules are pushed out in the other end of organic fertilizer mixing granulator.

The diameter of the produced granules can be controlled by adjusting the quantity of the raw materials and rotating speed of main shaft. The less the raw materials mixed and the higher the rotating speed, the smaller the granulated fertilizer.
