Wheel Type Tractor Compost Turner Manfacturer

Wheel Type Tractor Compost Turner

Wheel type Tractor compost turner can mix 400-500 cubic meters per hour,meet an organic fertilizer factory with 30 tons of finished fertilizer per day; the wheel type tractor compost turner has an energy consumption per ton of fertilizer less than 1.0 kw.the compost turner machine can work both indoor and outdoors.the windrow compost turner machine requires common diesel oil and only one operator.

Get price Send us

The technical parameter of Tractor compost turner for sale:

Model: GTZF-2000
Capacity: 400-500 m3/h
Turning width(for wheel): 2000mm
Turning height: 600-800mm
Row to row distance: 500-800mm
Required material particle: 250mm
Power (diesel engine): 36HP-water cooling-Electric starting
Max. Rotation speed(engine): 2200 r/min
Rated speed per hour: 2200 r/min
Working speed: 7.5-8.0 m/min
Driving speed: 50m/min(3 forwards gear;1 reverse gear)
Turning blades diameter: 600mm

Organic fertilizer tractor compost turner machine is suitable for viscous materials such as materials, sludge, furfural, straw, grass, and mushroom cultivation. It can meet the needs of manufacturers of multi-layer organic fertilizers, mushroom cultivation and so on.


working principle of tractor compost turner for sale:

The advanced fermentation process adopts microbial aerobic fermentation. The small scale compost turner produced by our factory is designed according to the principle of aerobic fermentation technology, so that the fermentation bacteria has a space to fully exert its functions. If the pile is too high or uses bucket machinery, trough fermentation, etc., an anaerobic state will be formed in the pile, so that the function of the fermenting bacteria cannot be fully exerted, which affects the quality of the fertilizer and its production cycle.

The small compost turner is more suitable for the action mechanism and process requirements of microbial fermentation materials, and can effectively mix viscous materials with microbial preparations and straw powder. Created a better aerobic environment for material fermentation. Under the loose material properties, the material deodorizes in 7-12 hours, heats up in one day, starts to dry in three days, and becomes fat in five to seven days. It is not only faster than deep tank fermentation, but also effectively prevents hydrogen sulfide during fermentation. The production of harmful and malodorous gases such as amine gas and antimony, which meets environmental protection requirements, can produce good bio-organic fertilizer.

Structure of tractor compost turner for sale:

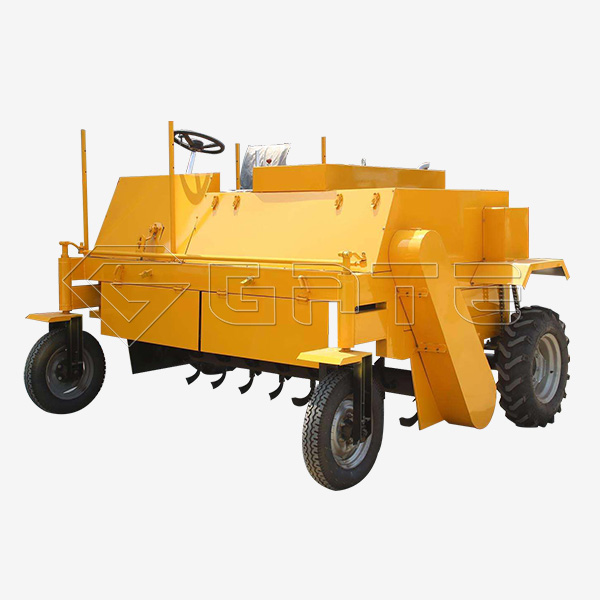

The small compost turner adopts a four-wheeled walking design, which can be advanced, reversed, turned, and controlled by one person. During the driving, the whole vehicle rides on the long-shaped fertilizer base piled up beforehand, and the rotating base shaft mounted under the frame is used to turn over the fluffy material, fluffy and move the pile. After the car passes, the new strip is formed. Shaped piles. The compost turner machine can be used in open outdoor open space or in workshop sheds.

the windrow compost turner belongs to Ground-stacking fermentation is a relatively advanced and most economical model for the construction of soil and human resources. It is necessary to grow the piles of materials, stir and crush the materials by turning the machine, and carry out organic matter under aerobic conditions. Decomposition. the compost machine for sale has the function of breaking, which greatly saves time and labor, so that the production efficiency and product quality of the organic fertilizer plant are significantly improved, and the cost is greatly reduced. Additional auxiliary facilities, such as automatic sprinklers, can also be added.
