Wood Pellet Ring Die Granulator Manfacturer

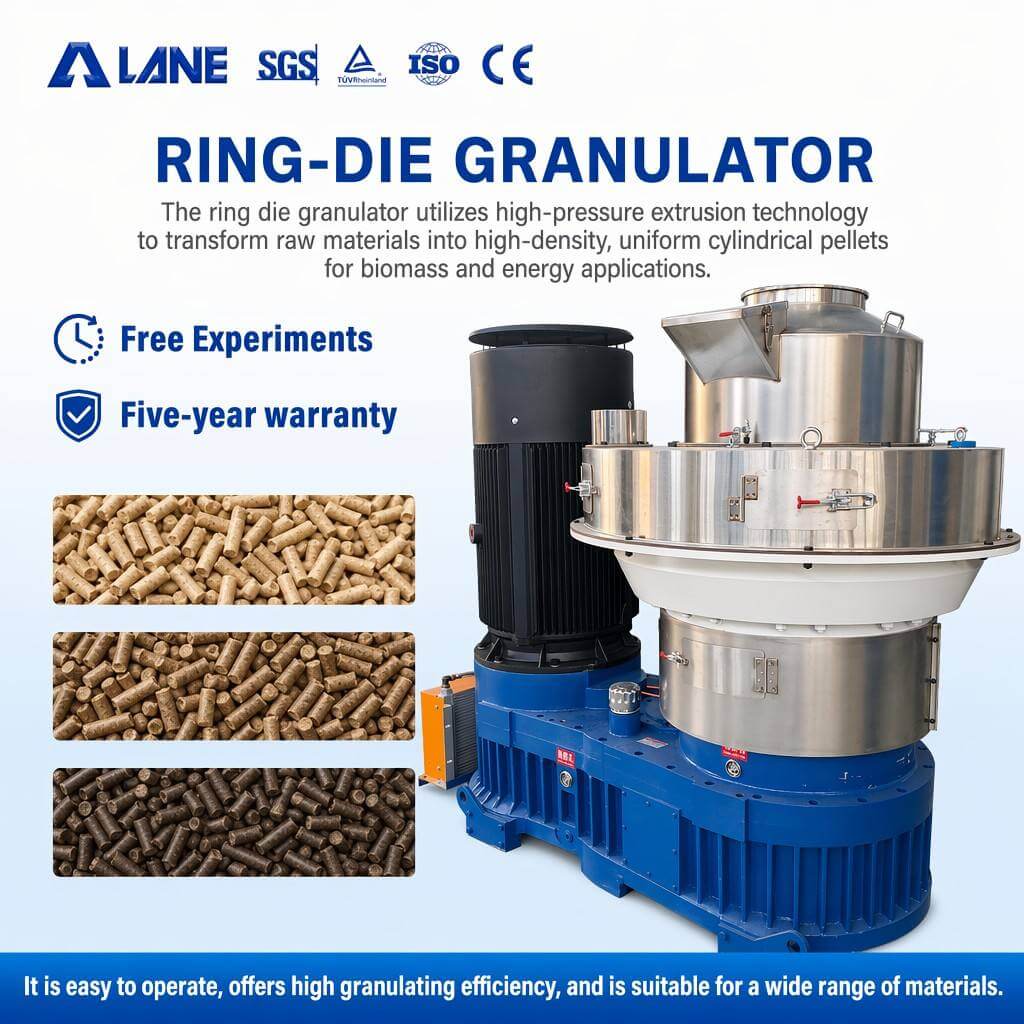

Wood Pellet Ring Die Granulator

Customizable ring die pelletizers for sale, factory direct, quality guaranteed!

Get price Send us

Standard Specifications for Vertical Ring Die Granulator:

Model Capacity(t/h) Weight(t) Power(kw) Size(mm)
L*W*H
LA470 0.8-1 2.8 55 2230*1010*1610
LA560 1-1.5 4.5 90 2230*1190*1920
LA580 1.5-2 4.6 132 2230*1200*1950
LA700 2.5-3 6.5 160 2560*1370*1960
LA850 3.5-4 8.5 220 2700*1750*2300

Raw materials suitable for ring die granulators:

Engineered for Excellence. Built for Production.

Unlock the full potential of your raw materials with our professional-grade Ring Die Pellet Mill. Designed for maximum output and minimal downtime, it’s the reliable heart of your pellet production line.

  • ✓ Unmatched Output: Achieve high production volumes to meet your business goals and customer demands.

  • ✓ Superior Pellet Quality: Produce dense, low-fine pellets that command a higher market price and improve your ROI.

  • ✓ Robust & Reliable: Forged from the finest materials, our pellet mill is built for 24/7 operation under the most demanding conditions.

  • ✓ Energy Optimized: Advanced design ensures higher throughput per unit of energy consumed, lowering your operating costs.

  • ✓ Expert Support: From die selection to process optimization, our technical team provides unparalleled after-sales service.

Ring Die Pellet Mill Working Principle:

The core components are a large, perforated ring die and two or more internal rollers. The powdery material is fed into the mill and distributed evenly onto the inner surface of the rotating ring die.

The stationary rollers, pressed firmly against the die by a hydraulic or mechanical system, capture the material. As the die rotates, the material is forced through the precisely machined holes in the die.

Under high pressure and temperature (generated by friction), the natural lignins in the material plasticize, binding the particles together.
The extruded strands are cut to the desired length by external knives, forming uniform pellets.
