Chemical Fertilizer Production Line Manfacturer

Chemical Fertilizer Production Line

Chemical Fertilizer Production Line or chemical fertilizer manufacturing plant like Urea, DAP, MOP, KCL,TSP, SSP, ammonium sulphate, phosphate, gypsum, lime, or other materials. chemical fertilizer plant is used for producing chemical fertilizer, Capacity: 1-50 ton/hour chemical fertilizer production process, Application: chemical fertilizer production line Advantages of chemical fertilizer production project: large capacity, high automation, high granulating ratio, low energy consumption, friendly environmental protection

Get price Send us

Introduction & Composition of chemical Fertilizer Production Line Supplier

chemical fertilizer production line or chemical fertilizer production plant is mainly used for producing compound fertilizer or chemical fertilizer. The line adopts rotary drum granulator which has large capacity for fertilizer granulation, and can be used for producing high, medium and low concentrated chemical fertilizer.

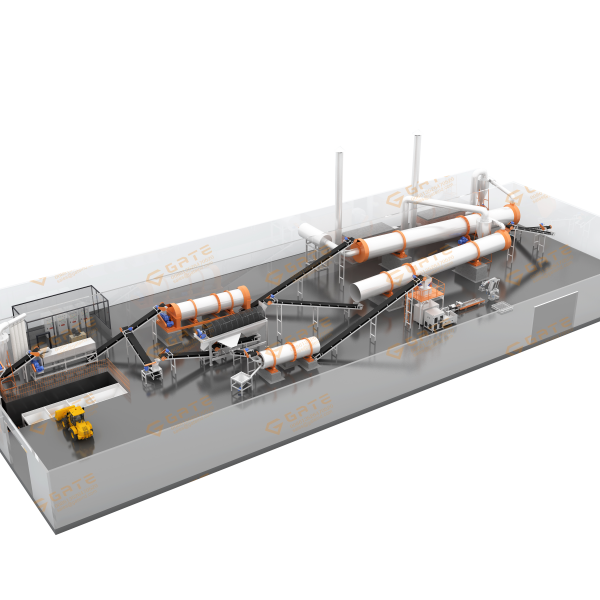

The chemical fertilizer manufacturing plant include automatic batching machine, mixer machine, rotary drum granulator or pan granulator, belt conveyor, rotary dryer, rotary cooler, rotary screen, rotary drum coating machine, automatic packing machine and chain crusher. We provide complete sets of equipment for chemical fertilizer production and solutions for our esteemed customers!

Application of chemical Fertilizer Production Line Manufacturer

1. Rotary drum granulator chemical Fertilizer Production line has wide adaptability to raw materials which can be urea, ammonium nitrate, ammonium chloride, ammonium sulfate, monoammonium phosphate(MAP), diammonium phosphate(DAP), single superphosphate(SSP), potassium chloride, potassium sulfate, gypsum, lime, etc. You can choose according to market demand and soil test results.

2. Rotary drum granulator chemical fertilizer production line can produce chemical fertilizer, organic fertilizer and organic compound fertilizer with the content of N, P, K ranging from 20-48%. It is mainly used for producing spherical particles with a diameter ranging from 1mm to 5mm.

Advantages of chemical Fertilizer Production Line Price

1. Equipped with advanced fertilizer manufacturing technology, this chemical fertilizer production line can complete npk fertilizer granulation all in one process.

2. Adopts advanced rotary drum granulator, granulating ratio is up to 90%, high intensity of granules,

3. The inner cylinder body adopts high quality rubber plate lining structure which prevents the raw material from sticking on the plate.

4. Wide adaptability of raw materials, suitable for chemical fertilizer, pharmaceuticals, chemicals, fodder and so on.

5. High-quality, stable performance, anti-corrosion and wear-resistant materials components, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc.

6. High efficiency and economic returns, and the small part of feeding back material can be granulated again.

7. Adjustable capacity according to customers’ requirements.

8. Highly automatic and high precision. The batching machine system and packing machine are controlled by PLC computer to realize automation.
We have taken full consideration of user experience when designing and manufacturing fertilizer machines.


Process of chemical Fertilizer Production Line

The process technology of N-P-K fertilizers is advanced and reliable. According to the compatibility and crossability of the three raw materials, N-P-K compound fertilizer in different percentage composition can be manufactured applicable for different requirements of soils and crops.

1. Mixing Process: the raw materials are put into mixer in strict accordance with the technical requirements of each raw material quantity. Then the conveying belt sends the materials to crushing machine.

2. Crushing Process: the crusher machine smashes lump materials into small ones that the fineness meets the required for granulation. Then the conveyor belt sends the materials to rotary drum granulator machine.

3. Granulating Process: there is a water pump to offer gas or steam and makes fertilizer particles forming easily. The solid fertilizer powder after granulation will rise by the rotation of the cylinder and scroll down under the effect of gravity. At the same time, according to the raw material quantity, add a certain proportion adhesives for granulation. After several times repetition of the same rotation, fertilizer materials gradually form. Next the conveying belt sends the materials to rotary drum drying machine and cooling machine.

4. Drying & Cooling Process:There are also draught fans to supply hot air and cold air to rotary dryer machine and rotary cooler machine respectively. After drying and cooling is screening process. the coating machine can beautify the materials and keep the effect of the finished product .

5. Screening Process: the qualified materials can be sent to packaging machine by bucket elevator, while others are conveyed back to crusher or granulator to be re-processed.

6. Fertilizer Coating: The conveyor belt sends the qualified granules from the second screen into therotary coating machine from the higher end. With the rotation of the cylinder, powder or liquid are evenly coated on the surface of granules, which prevent caking, meanwhile increase the brightness and roundness of the granular. The machine is lined with polypropylene plate or stainless steel plate.


How to Produce the High Nitrogen Compound Fertilizer?

To produce high nitrogen compound fertilizer, one important equipment is needed in the granulating process: the spraying system. The melting tank melt the urea and then spray the melted liquid into the granulating machine so that it will mix with powder phosphate fertilizer, potash fertilizer and other nitrogen fertilizer. Then with the help of the granulator, the liquid and other raw materials will be mixed and granulated. This production technology is used to produce compound fertilizer or complex fertilizer with high nitrogen content from 25%-45%.
