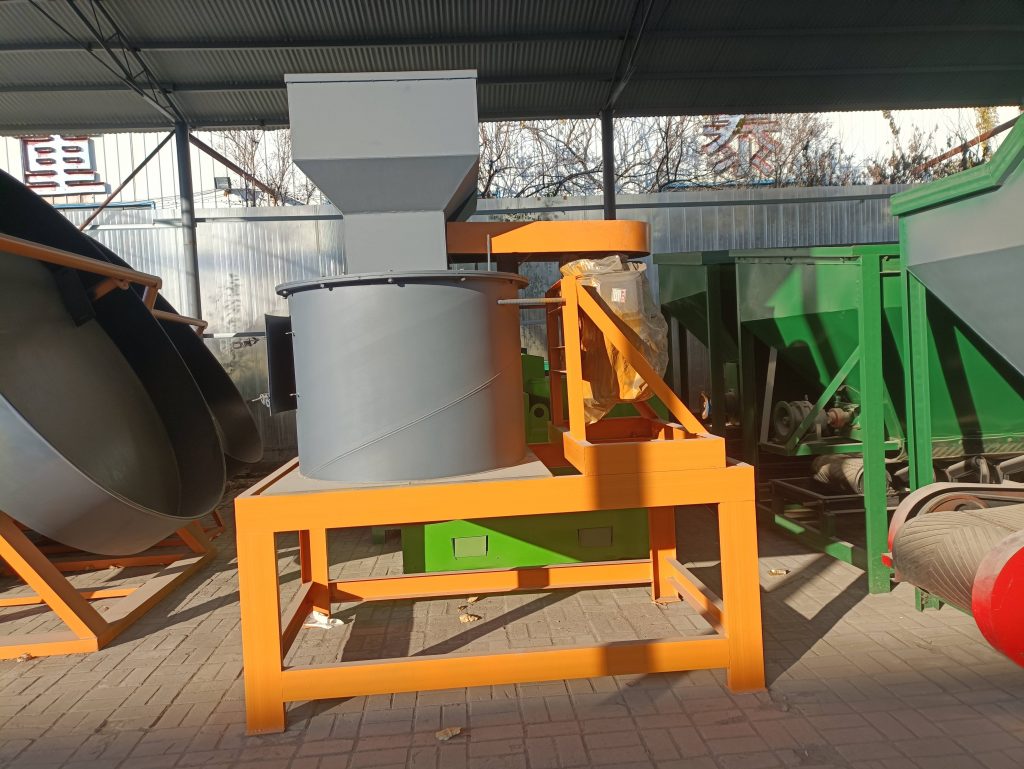

Simple and Efficient Vertical Shaft Crusher

The working process of the Vertical shaft Crusher:

the material enters from the feeding port and collides with the high-speed rotating chain hammer in the casing. After the material is impacted, it is squeezed and crushed. The powder is discharged from the lower part.

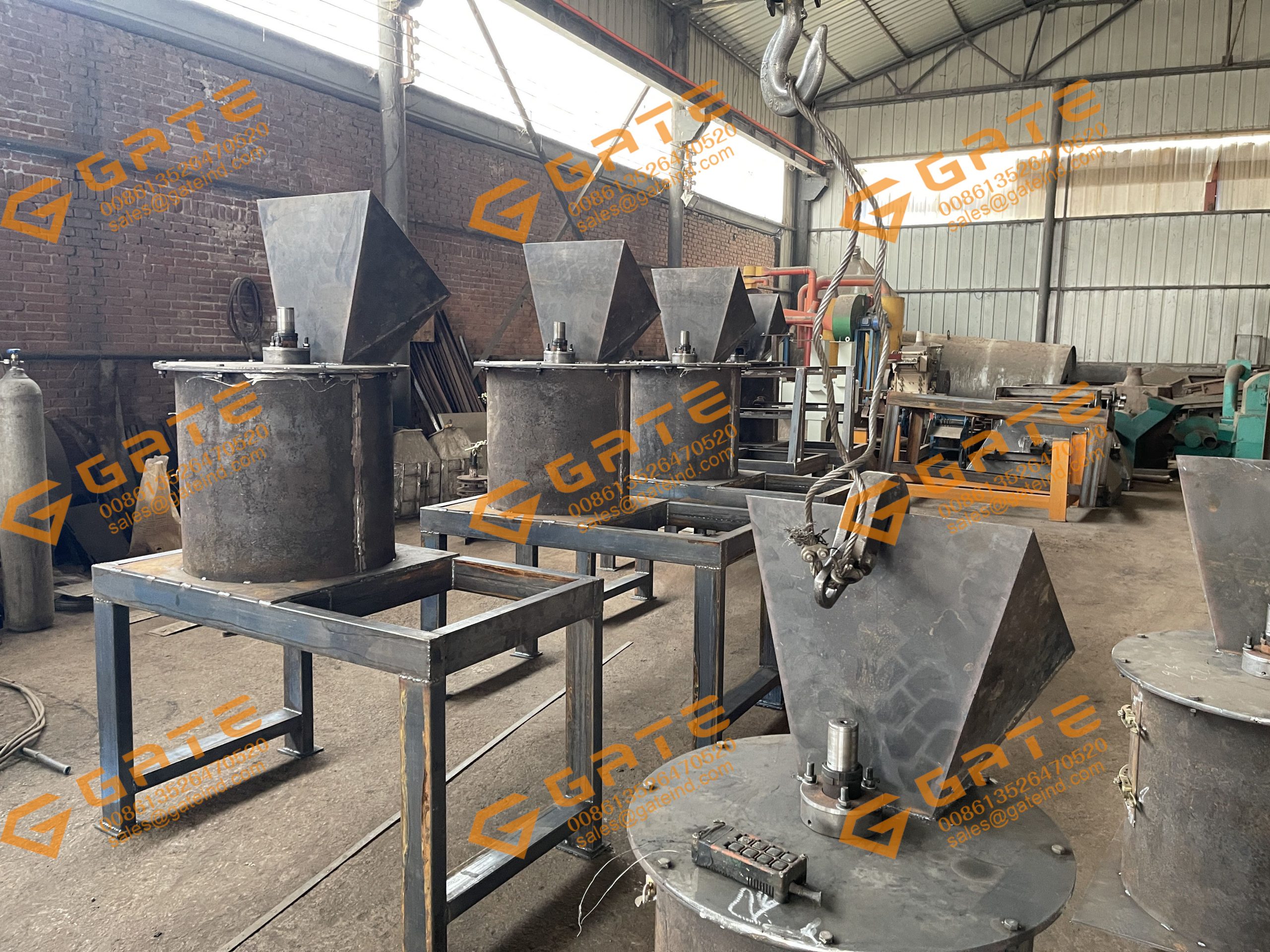

Vertical shaft crusher structural composition:

The structure is composed of the lower frame, the casing, the upper and lower shaft seats, the main shaft, the hammer head, the hammer head support, the belt pulley, the motor frame, etc. The power is driven by the triangle to drive the main shaft to rotate. The main shaft has two upper and lower bearing seats and bearings. The base is installed on the upper and lower ends of the casing. The casing assembly is installed on the lower frame. The spindle is equipped with hammers and hammer brackets. The feeding hopper is installed on the upper part of the casing. In order to facilitate the loading and unloading of the hammers, the casing has a shutter. Easy to disassemble and repair.

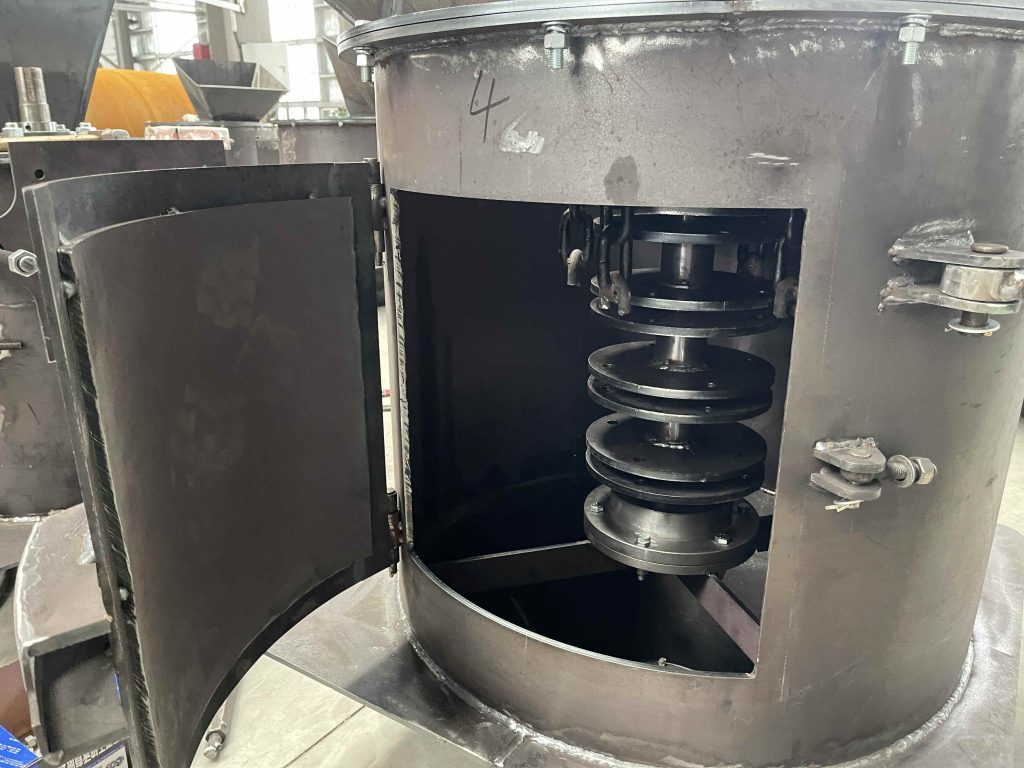

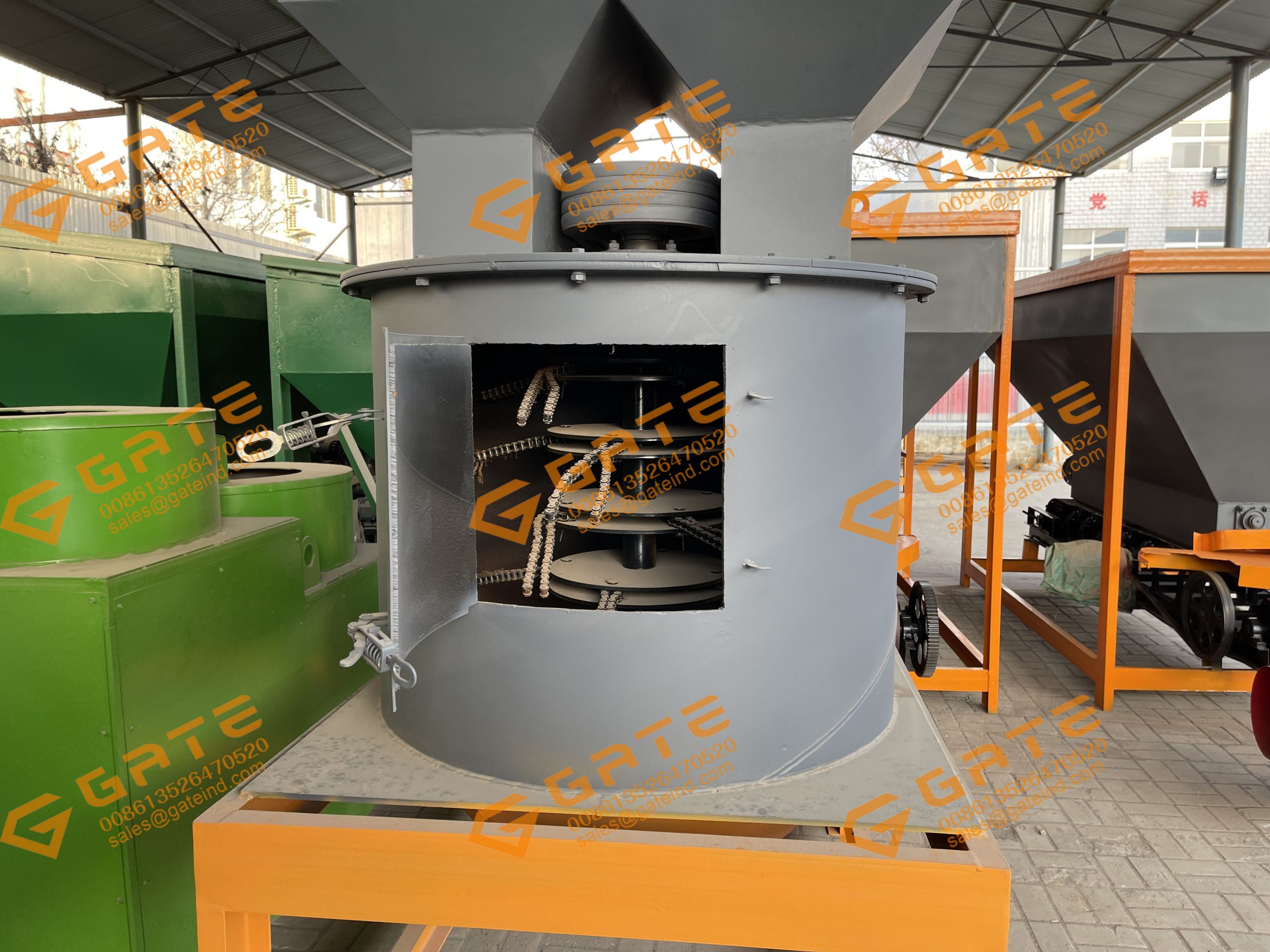

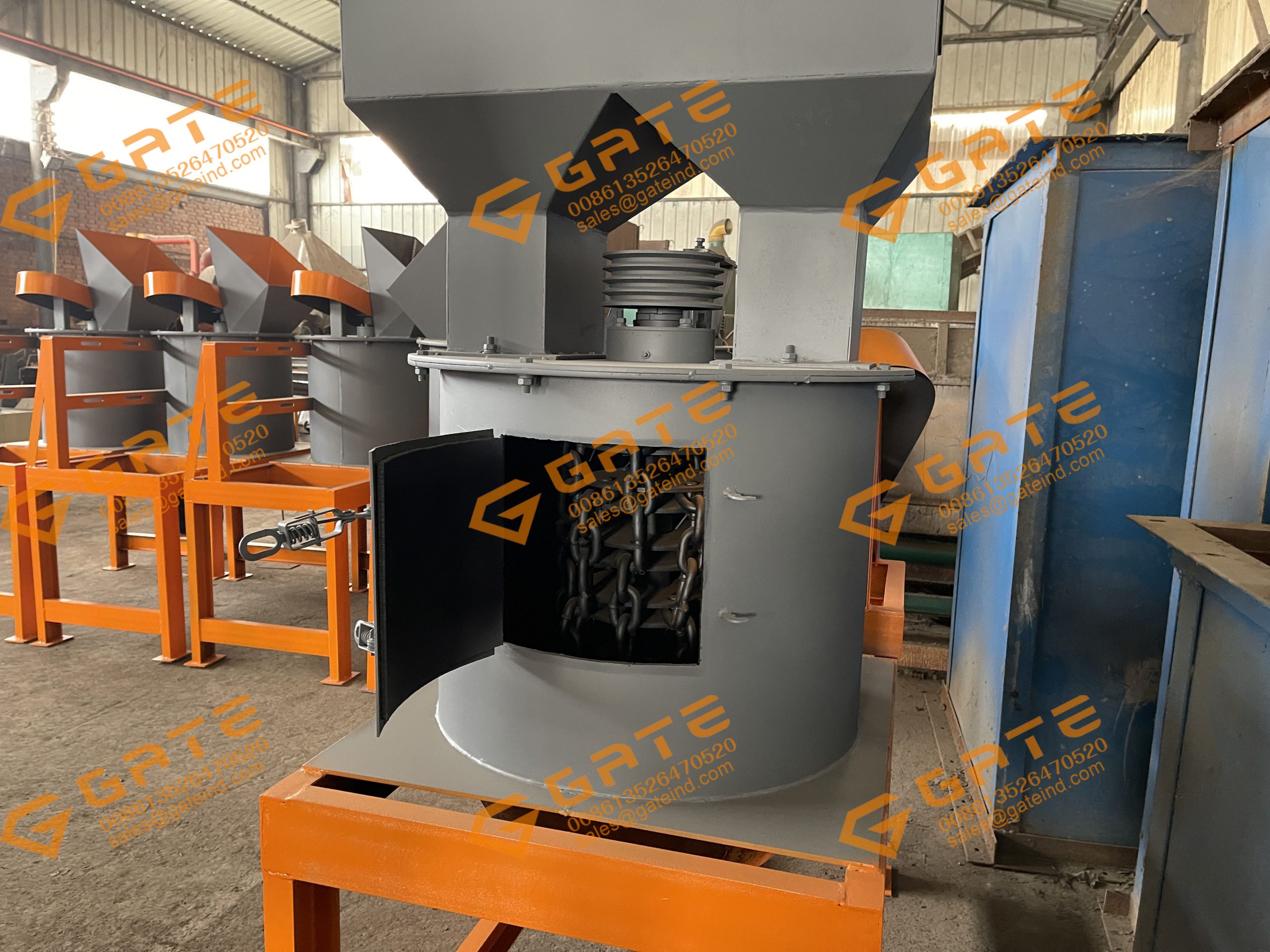

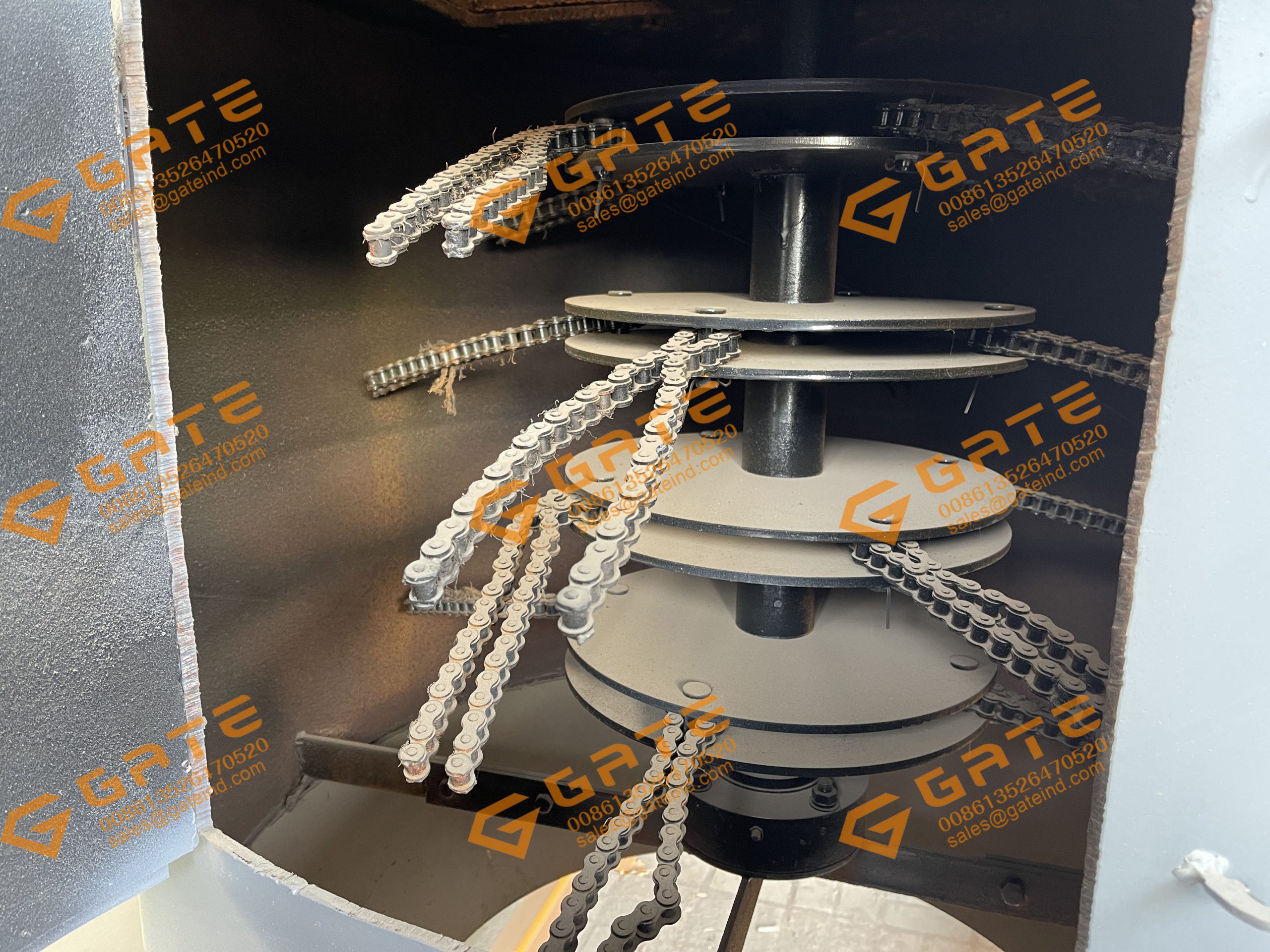

Vertical crusher internal structure:



Vertical shaft crusher parameter：

Model Output Grinding fineness Powder Speed
GTC-60V 4-6t/h 0.5-5mm 11KW 1450r/min
GTC-80V-1 7-10t/h 0.5-5mm 30KW 1450r/min
GTC-100V 9-12t/h 0.5-5mm 37KW 1450r/min

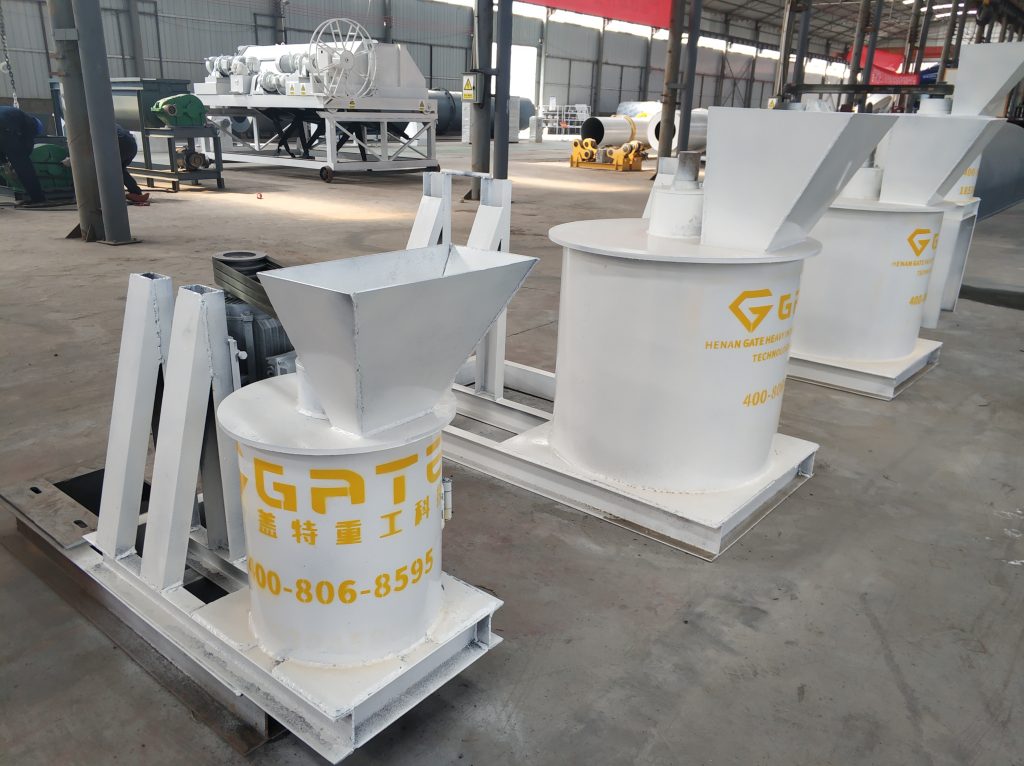

Vertical shaft crusher Performance characteristics:

The inner wall of the machine casing is lined with stainless steel, which alleviates the problems of sticking to the wall and is not easy to clean. The hammer is made of special steel forged to resist wear and corrosion, which can effectively prolong the service life and improve production efficiency.

1. The structure is simple and reasonable, and the operating cost is low.

2. It has the functions of fine crushing and coarse grinding.

3. Working noise is lower than 75 decibels, and dust pollution is less.

4. High crushing rate and energy saving.

5. It is less affected by the moisture content of the material, and the moisture content can reach about 8%.

6. Suitable for crushing medium-hard and extra-hard materials.

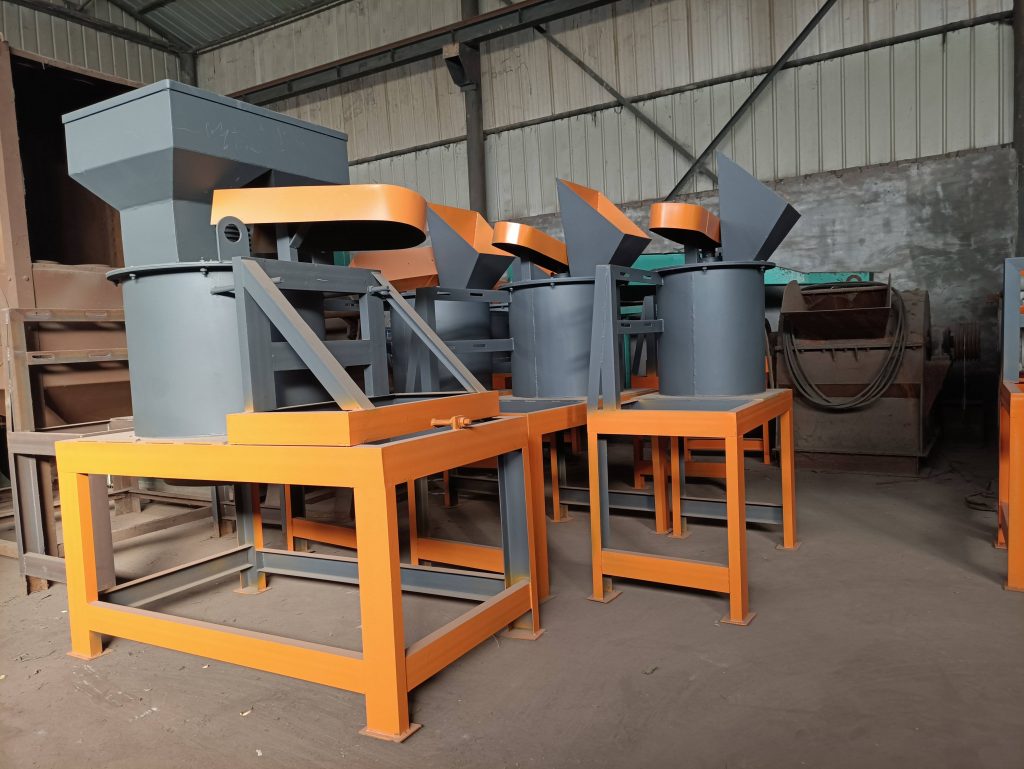

Vertical shaft crusher advantages：

  1. The inner wall of the machine casing is lined with polypropylene board, which alleviates the problems of sticking to the wall and difficult to clean.
  2. The chain cutter head is made of special steel linden, which can effectively improve the production efficiency.
  3. This machine has the characteristics of reasonable structure, convenient operation and strong applicability.

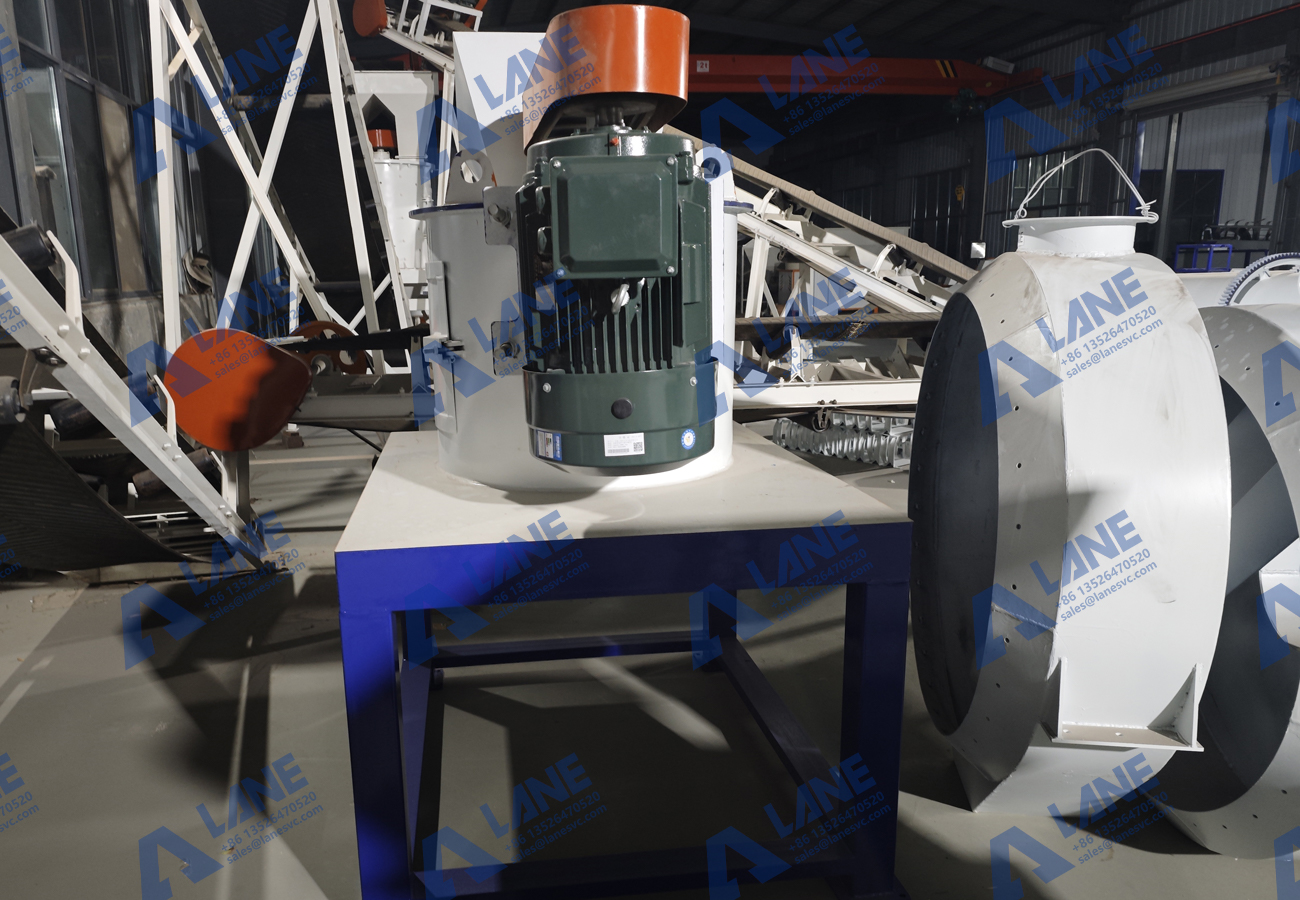

If you want to have a simple and efficient vertical shaft crusher, please contact us immediately.
