How to Use the Double Shaft Mixer

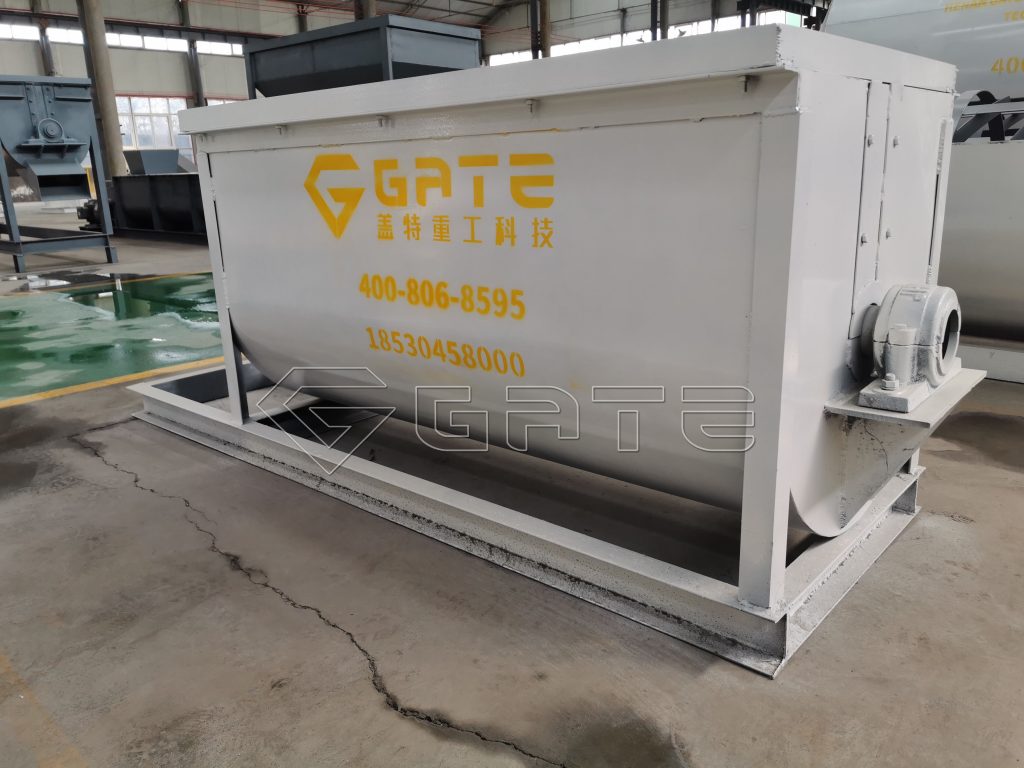

The horizontal mixer is a new type of mixing equipment, which can make the materials get fast and uniform mixing in a short time. The shaft seals at both ends adopt special seals, and there is no leakage of powder and liquid. The replacement cost of sealing consumables is low and easy to replace. It is a kind of high-efficiency mixing equipment with wide application, strong adaptability and good effect.

working principle:

Two-axis rotating reverse paddles are installed in the horizontal simplified form. The paddles stir the materials in the axial and radial directions at a fixed angle, so that the materials are mixed quickly and evenly. Performance characteristics of the horizontal mixer. The reducer drives the rotation of the shaft. The speed and the structure of the blade will weaken the gravity of the material. With the lack of gravity, the difference in particle size and specific gravity of each material is ignored in the mixing process. The intense stirring movement shortens the mixing time, making it faster and more efficient. Even if the material has a difference in specific gravity and particle size, it can achieve a good mixing effect under the rapid and violent tumbling of the staggered mixing blades. The mixing uniformity is high, the residual amount is small, and it is suitable for mixing more than two kinds of fertilizers and additive premixes.

Instructions for use:

1. This machine needs to be installed on a level ground, and gear lubricating oil needs to be added to the reducer before the first use! Heating type needs to add heat transfer oil and dock other heating devices;

2. Clean the machine to ensure that there is no sundries contaminating raw materials and sundries; when cleaning the mixing chamber, list the power-off operation;

3. Connect the power supply to the electric box, turn on the emergency stop switch, and adjust the timer value to be greater than 1; start the stirring button, check the direction of the motor, whether the machine is running abnormally, and whether it is running smoothly;

4. The heating type has a temperature control and constant temperature setting, and the temperature parameter needs to be set; the place where the heat transfer oil is added cannot be closed to facilitate the oil temperature and ventilation;

5. Turn off the stirring button after each operation is completed, and enter the preparation for feeding; close the lid after the feeding is completed, confirm whether the pressure port is fastened, and set the stirring time according to the specific gravity of different raw materials;

6. Start mixing. After mixing, open the bottom discharge device. When discharging, do not extend the body part into the mixing chamber and the inside of the discharge port;

7. Do not fill the mixing chamber with raw materials, so as not to affect the mixing quality;

8. Please turn off the power if the machine is not used for a long time;

9. If mixing materials with large differences in specific gravity, increase the mixing time appropriately.
