Bentonite Cat Litter Production Line

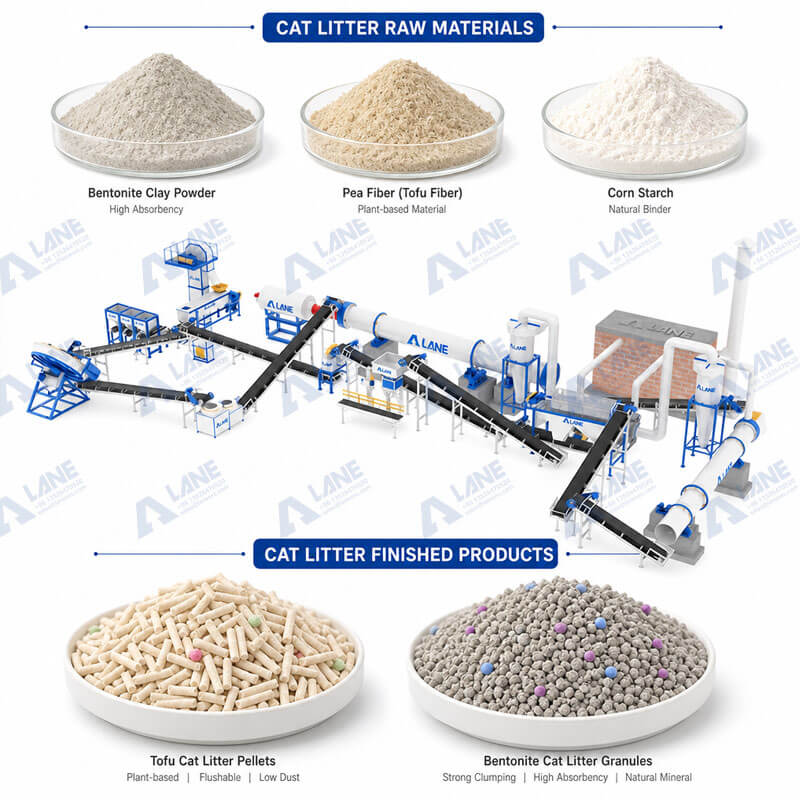

Composition of Bentonite Cat Litter Production Line

The bentonite cat litter production line includes raw material hopper, automatic batching machine, belt conveyor, hammer crusher, mixer machine, disc granulator, rotary dryer, rotary screen, dust removal system and automatic packing machine.

We provide complete sets of equipment for bentonite cat litter production and customized production solutions according to customers’ raw materials, capacity and cat litter specifications.

Application of Bentonite Cat Litter Production Line

1. The bentonite cat litter production line mainly uses sodium bentonite or calcium bentonite as the basic raw material. According to product requirements, additives such as deodorizing agents, antibacterial agents and fragrances can also be added.

2. The disc granulator is mainly used to produce round or semi-round bentonite cat litter granules. By adjusting the disc inclination angle, rotation speed, feeding rate and moisture content, the particle size and granulation performance can be controlled according to the required cat litter specification.

3. The production line can be used for manufacturing bentonite cat litter with different particle sizes and formulations, making it suitable for clumping cat litter, deodorizing cat litter and other bentonite-based cat litter products.

Advantages of Bentonite Cat Litter Production Line

1. Suitable for Bentonite Materials
The production process is specially designed for bentonite-based cat litter, with controlled crushing, mixing, granulation and drying processes.

2. Good Particle Formation
The disc granulator provides a rolling and agglomerating effect, helping form relatively uniform and rounded particles.

3. Adjustable Particle Size
The particle size can be adjusted by controlling the disc operating parameters, material moisture and feeding conditions.

4. High Granulation Efficiency
The inclined rotating disc continuously rolls and agglomerates the material, allowing fine bentonite powder to gradually form into granules.

5. Flexible Production Capacity
The equipment configuration can be customized according to the customer’s required capacity, workshop layout and final cat litter specifications.

6. Stable Drying and Screening
The rotary dryer reduces the moisture content of freshly granulated cat litter, while the screening machine separates qualified particles from oversized and undersized materials.

7. Easy to Operate and Maintain
The production line has a straightforward process structure and can be equipped with automatic feeding, weighing and packing systems according to the customer’s requirements.

8. Complete Production Solution
From bentonite crushing and mixing to disc granulation, drying, screening and packaging, the complete line provides an integrated solution for commercial cat litter production.

Process of Bentonite Cat Litter Production Line

The production process of bentonite cat litter mainly includes raw material preparation, crushing, mixing, disc granulation, drying, screening and packaging.

1. Raw Material Preparation

Bentonite is fed into the raw material hopper and then conveyed to the crushing and mixing section. According to the product formulation, deodorizing agents, fragrances or other additives can be added through the batching system.

2. Crushing Process

The hammer crusher crushes large lumps of bentonite into fine and relatively uniform powder. Proper particle size is important because the raw material needs to be thoroughly mixed and rolled during the subsequent granulation process.

3. Mixing Process

The crushed bentonite powder and other additives are fed into the mixer according to the required formulation. Water is added at a controlled rate to adjust the moisture content and improve the agglomeration performance of the material during disc granulation.

4. Disc Granulation Process

The conditioned bentonite material enters the disc granulator.

The inclined disc rotates continuously, causing the material to roll and move along the disc surface. Fine bentonite particles gradually adhere to each other under the combined action of moisture, rolling and centrifugal force, forming larger granules.

By adjusting the disc inclination angle, rotation speed, moisture content and feeding rate, the formation and size of cat litter particles can be controlled.

5. Drying Process

Freshly formed cat litter granules contain a certain amount of moisture and are conveyed to the rotary dryer.

The rotary dryer uses hot air to reduce the moisture content of the granules. During the rotation of the drum, the cat litter is repeatedly lifted and dispersed, increasing contact with the hot air and improving drying efficiency.

6. Screening Process

After drying, the cat litter enters the rotary screening machine.

Qualified particles are separated according to the required particle size and sent to the packing section. Oversized and undersized materials can be returned to the appropriate processing section for reprocessing, reducing material loss.

7. Packing Process

The qualified bentonite cat litter is conveyed to the automatic packing machine.

According to the customer’s packaging requirements, the machine can fill and seal different bag sizes for retail or bulk distribution. The finished cat litter can then be palletized and prepared for storage or transportation.

How to Produce Round Bentonite Cat Litter?

The disc granulator is the key equipment for producing round or semi-round bentonite cat litter.

During operation, bentonite powder with controlled moisture content is continuously fed onto the rotating disc. As the disc rotates at an inclined angle, the material rolls repeatedly on the disc surface. Small particles gradually collect and grow into larger granules.

The final particle size and shape are affected by several factors, including bentonite properties, moisture content, disc inclination angle, rotation speed, feeding rate and residence time.

For customers requiring different cat litter sizes, the disc granulator can be adjusted according to the target product specification. A screening system is normally installed after drying to separate particles outside the required size range.

If you are planning a bentonite cat litter production project, we can provide a complete equipment configuration according to your raw material, production capacity, particle size, moisture requirement and packaging specifications.
